The primary difference between TTT diagrams and CCT diagrams is that TTT diagrams examine the progress of transformation as a function of time, at a fixed temperature. CCT diagrams examine the progress of transformation as a function of changing temperature. Time-temperature transformation (TTT) diagrams Measure the rate of transformation at a constant temperature. In other words a sample is austenitised and then cooled rapidly to a lower temperature and held at that temperature whilst the rate of transformation is measured, for example by dilatometry.

As we have already explained above, the TTT diagram is time and temperature-dependent diagram and it is a result of non-equilibrium cooling. For a clear understanding, we showed a few red lines denoted by S1 to S5 in the figure. We also explained above that austenitization temperature is essential for all transformation.

Ttt diagram explanation

TTT or Triple T may stand for: . TTT (education), a life skills education program in India TT Technologies, a construction equipment manufacturer; Taitung Airport, IATA code; Talk TV (Philippine TV network), an English-language news and talk television network in the Philippines Team time trial, a bicycle racing event; Tekken Tag Tournament, the fourth installment of the Tekken fighting game ... 2. T-T-T diagram is plotted for different length of times and temperature These curves gives us the information of transformation for different phases With the help of T-T-T diagram we can control the phase transformation by changing the conditions The following diagram shows a part of the iron-carbon phase diagram. Concentrations C 1, C 2, C 3, C 4 are various equilibrium ( stable as well as metastable ) concentrations of carbon. c α C 1: carbon concentration in α for α-Fe 3C equilibrium. C 2: carbon concentration in α for α-γ equilibrium C 3: carbon concentration in γ for γ-Fe ...

Ttt diagram explanation. Time-Temperature-Transformation (TTT ) Diagram T (Time) T (Temperature) T (Transformation) diagram is a plot of temperature versus the logarithm of time for a steel alloy of definite composition. It is used to determine when transformations begin and end for an isothermal (constant temperature) heat treatment of a previously austenitized alloy. Explanation: Ferrite, cementite, pearlite, and austenite are equilibrium phases which are based on the iron-iron carbide equilibrium diagram. For other non-equilibrium phases like martensite and bainite, the Fe-Fe3C diagram cannot be used. In such cases, we use the TTT and CCT diagrams. The TTT diagram is really a simplified diagram of the kinetics of pearlite and bainite formation, and the diffusion-less transformation of martensite. It is a diagram of overlapping curves (Figure 6). The shape and position of the curves depend on the alloy composition, grain size, and carbon content. TTT diagram is a plot of temperature versus the logarithm of time for a steel alloy of definite composition. TTT diagram indicates a specific transformation that starts and ends and it also shows what percentage of the transformation of austenite at a particular temperature is achieved. Download Solution PDF Share on Whatsapp

Isothermal transformation diagrams (also known as time-temperature-transformation (TTT) diagrams) are plots of temperature versus time (usually on a logarithmic scale).They are generated from percentage transformation-vs time measurements, and are useful for understanding the transformations of an alloy steel at elevated temperatures.. An isothermal transformation diagram is only valid for one ... TTT diagram stands for "time-temperature-transformation" diagram. It is also called isothermal transformation diagram Definition: TTT diagrams give the kinetics of isothermal transformations. 2 Determination of TTT diagram for eutectoid steel Davenport and Bain were the first to develop the TTT diagram of eutectoid steel. time-temperature-transformation (TTT) diagrams. About Nucleation Rate (Kinetics) • Nucleation is a competition between the capillary forces (surface energies) that resist the creation of new interfaces and a driving force to grow a more stable phase. • The overall rate of nucleation is a product of the equilibrium number of critical size nuclei Applications of T TT diagrams Martempering Austempering Isothermal Annealing Patenting Martempering : This heat treatment is given to oil hardenable and air hardenable steels and thin section of water hardenable steel sample to produce martensite with minimal differential thermal and transformation stress to avoid distortion and cracking.

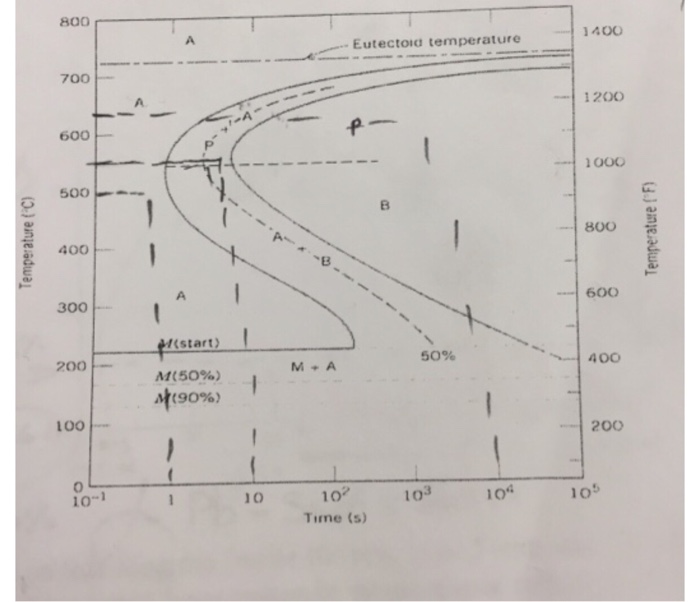

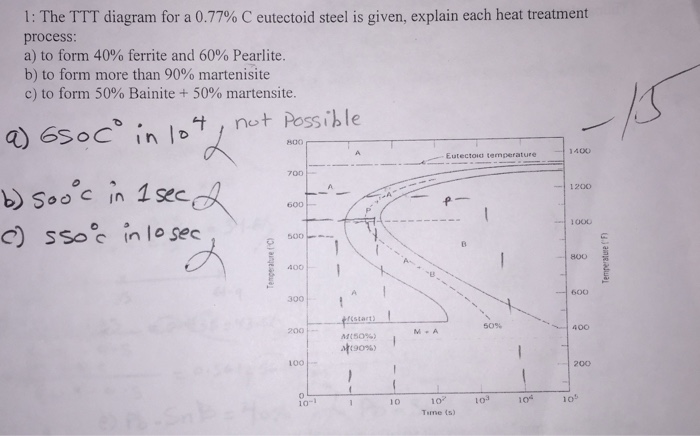

Explanation: S curve, C curve isothermal diagram and Bain's curve are all names given to time temperature transformation diagrams. What are TTT diagrams list any 3 information that a TTT diagram can provide? TTT diagram gives 3- Stability of phases under isothermal transformation conditions. 4- Temperature or time required to start or finish ... Time-Temperature Paths on Isothermal Transformation Diagram Solution : a. (Red) The specimen is cooled rapidly to 433 K and left for 20 minutes. The cooling rate is too rapid for pearlite to form at higher temperatures; therefore, the steel remains in the austenitic phase until the Ms temperature is passed, where martensite begins to form. TTT Diagram • On the other hand, TTT diagram is a more practical diagram. • It shows what structures can be expected after various rates of cooling. • It graphically describes the cooling rate required for the transformation of austenite to pearlite, bainite or martensite. #modimechanicalengineeringtutorials, #mechanicalmagicmechanicallearningtutorials,Welcome to My YouTube Channel MODI MECHANICAL ENGINEERING TUTORIALS.This ch...

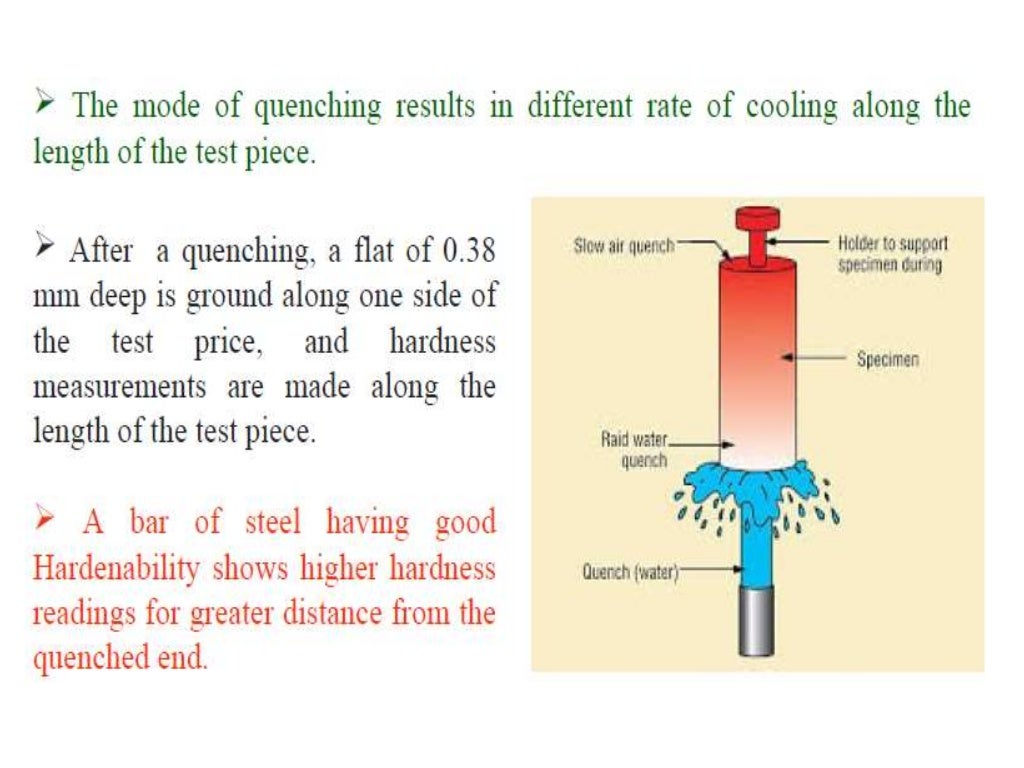

IRON CARBON EQUILIBRIUM DIAGRAM, TTT DIAGRAM AND HEAT ...

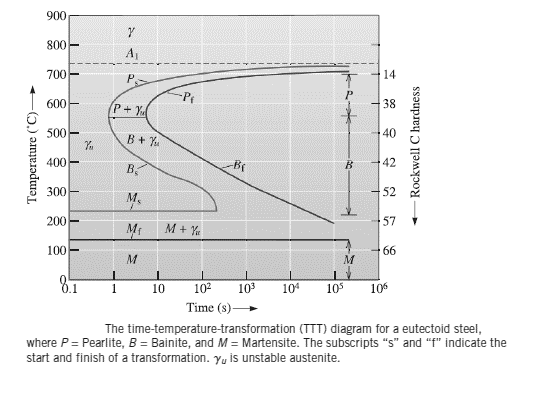

is the TTT diagram, so called, because it represents the time taken at any given temperature for a given fraction of the transformation to get completed. The typical TTT diagram is a C shaped curve. In this case, we have used it to represent, at any given temperature, the time required for 1% transformation to complete.
